400mm Laser Turbo Segment Diamond Cutter Saw Blade for General Purpose

FOB Reference Price:Get Latest Price
US $32-41 / Piece | 5 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
ShangHai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Johnsontools
Model Number:
7.2.2.3
Type:
Saw Blade
Blade Material:
Diamond
Finishing:
Other
Size:
400mm
HS code:
8202391000
Packaging & Delivery
Packaging Details
Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.
Delivery Time
25-30 days







Established in 2000year

Factroy

Quality Control

Competitive price

EM

Short delivery time



1. Description of 400mm Laser Turbo Segment Diamond Cutter Saw Blade  for General Purpose



A multi-application diamond blade used for fast cutting on a very wide range of concrete, masonry and construction materials. These diamond blades are designed for moderate to heavy saw cutters who want to cut materials with minimal blade changes. General blades cut the entire construction material spectrum and feature undercut protection for use on asphalt and green concrete. This blade is perfect for landscapers, general contractors, utilities, municipalities, sewer and water departments and rental companies.

Applications: Refractory brick, marble, granite, asphalt, green concrete, masonry, brick, block, concrete, hard concrete, pavers, field stone, ductile iron pipe.

Suitable Machinery: Angle grinder, circular saw, high speed saws, walk behind saw (13 HP max), masonry saw.





2. Features of 400mm Laser Turbo Segment Diamond Cutter Saw Blade  for General Purpose



1) 100% laser welding technology.

2) Wet or dry cutting granite, marble, sandstone, masonry, concrete, reinforced concrete, asphalt, brick etc.

3) Unercut protection segments provide longer lifetime.

4) Suit to high Speed Hand Saws, Table Saws, Low HP Walk-Behind Saws.

5) Well exported to America, European, Asia, Africa, Australia market.



3. Specification information of 400mm Laser Turbo Segment Diamond Cutter Saw Blade  for General Purpose



Diameter:400mm

Segment thickness:3.4mm

Segment height:10/12/15mm



Bore size:25.4mm, 25.4/20mm, 50mm, 60mm etc or as your request.

Inch

Diameter
(mm)

Teeth length
(mm)

Teeth thickness
(mm)

Teeth height
(mm)

Teeth number
(nos)

16"

400

40

3.4

10

28/24

16"

400

40

3.4

12

28/24

16"

400

40

3.4

15

28/24

Other size we could do



Inch

Diameter
(mm)

Teeth length
(mm)

Teeth thickness
(mm)

Teeth height
(mm)

Teeth number
(nos)

4"

105

32

2.2

7/10/12

8

4.5"

115

31

2.2

7/10/12

9

5"

125

31

2.2

7/10/12

10

6"

150

34

2.2

7/10/12

11

7"

180

34

2.4

7/10/12

14

8"

200

40

2.4

7/10/12

13

9"

230

37

2.6

7/10/12

16

10"

250

40

2.6

10/12/15

16

12"

300

40

3.0

10/12/15

20/18

14"

350

40

3.2

10/12/15

24/21

18"

450

40

3.6

10/12/15

32/26

20"

500

40

4.0

10/12/15

36/30

24"

600

40

4.4

10/12/15

42/36

26"

650

40

4.4

10/12/15

42/36

28"

700

40

5.0

10/12/15

42/36

32"

800

40

6.0

10/12/15

46/40

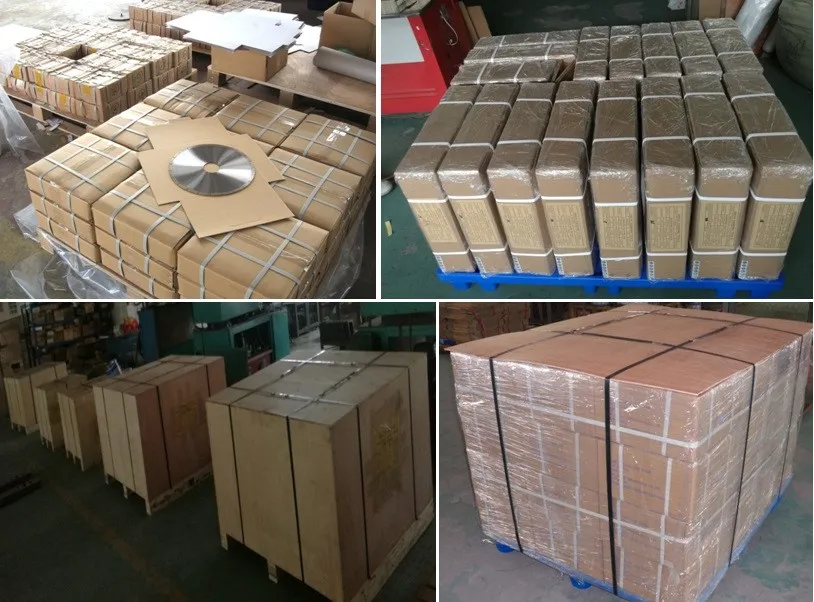

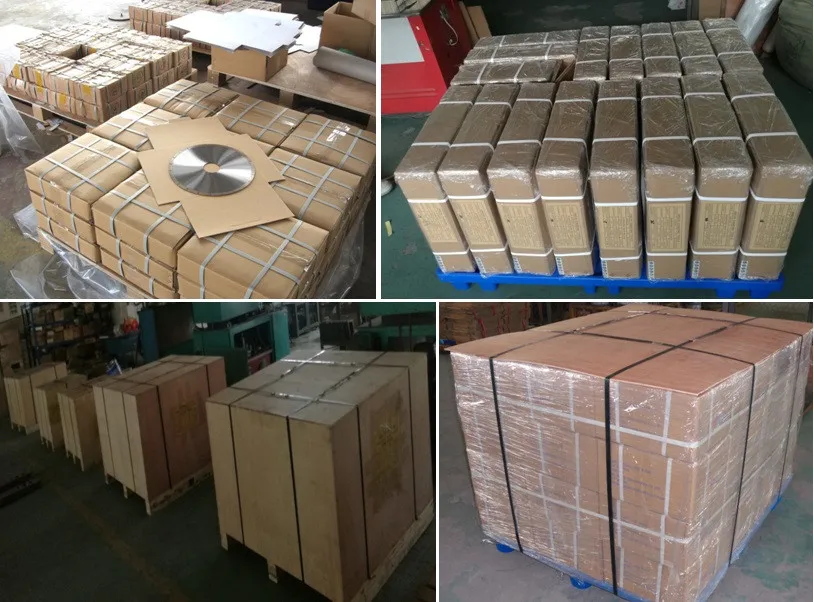

4. Packing and Shipping



Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.























5.Payment term



T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.



6.Our Technology



We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.

Providing our customers with satisfactory diamond cutting tools is our aim!



7.Our Related Products





8.Cerification








9.Our exhibition









10.FAQ.



Q: How to place order to your company?

1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity?  Nearest airport and seaport? Then we will give you best offer.

2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.

3.Production Process: Arrange production, based on the contract and PI description and mutual communication,    we will follow closely the full production process; keep you informed of  till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.

4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.

5.After–Sale Service: Track the goods, learn the products’ performance.

6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.



11.Sales Teams





12.Company Information



Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China’s stone and construction industries.

We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.

Johnson Tools people sincerely looking forward to serving you in the near future!

Let's work together to make the business better and better.







13.Contact me now!





Contact us today,  you will get more than what you see

www.johnsontoolscn.com   o r  www.diamondsaw-blade.com
